Sabre-350 Sabre350 14" Bandsaw (230v)

(67000)
Sabre-350 Sabre350 14

The SABRE range of bandsaws are the next evolutionary step from the highly regarded and market-leading Record Power premium bandsaws. We have built on the success of our premium range by introducing some fantastic new features to the SABRE-350 to make a bandsaw that is more effective, accurate and easier to use than any other machine in its class. Featuring an 1100 W output (1 1/2 horsepower) motor coupled with the heavy-duty cast iron band wheels, the SABRE-350 packs a real punch and can handle cuts to its full capacity with ease. The two speeds, which are slightly faster than comparable machines, make it ideal for cutting non-ferrous metals as well as wood. The cam-action fence adjustment, spring-loaded guides, cam-action blade tension release and double-sided fence mount make this a machine that is so easy to setup and use it leaves you free to concentrate fully on the project at hand.

Heavy Duty Cast Iron Band Wheels

Heavy Duty Cast Iron Band Wheels

Dynamically balanced and heavy, the wheels provide a flywheel effect during use, contributing to the power and effectiveness of the machine.

Double-Sided Fence Mount

Double-Sided Fence Mount

The unique fence mount design allows the fence to be placed to the right hand side of the blade, with the fence extrusion secured on the opposite side of the mount.

Cam-Action Blade Tension Adjustment

Cam-Action Blade Tension Adjustment

Release and re-apply blade tension instantly using the cam-action handle. This makes changing blade simple and fast and if the new blade is the same as the old, the correct tension can be instantly re-applied on fitment.

Easy-Adjust Blade Guides

Easy-Adjust Blade Guides

The spring-loaded blade guides can be adjusted quickly and easily without tools.

Resaw Bar Included

Resaw Bar Included

The resaw bar is easily installed to the fence and can be used when resawing long pieces - the timber pivots on the resaw bar to compensate for grain variations in the wood to avoid the cut wandering.

Heavy Duty Cast Trunnion

Heavy Duty Cast Trunnion

This industrial-style trunnion gives rock-solid support to the table and can be easily adjusted up to 45º using the substantial rack-and-pinion system and locked firmly in place with the large and easily accessible locking lever.

Integral Cabinet Base

Integral Cabinet Base

The cabinet provides useful storage space for tools and timber.

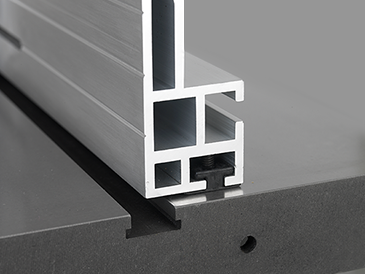

Cam-Action Fence Positioning

Cam-Action Fence Positioning

Aligning the blade with the fence is extremely fast and easy, requiring no adjustments to the fence rail.

Useful Height Guide

Useful Height Guide

The blade guard features a scale to show the cutting height, an ideal reference for accurately setting the guides to the required position.

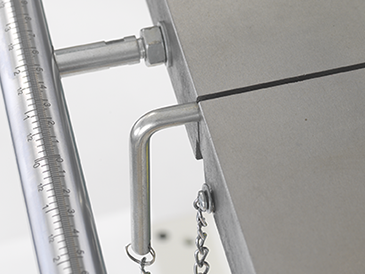

Table Levelling Pin

Table Levelling Pin

Perfect alignment of the table is ensured with the simple-but-effective levelling pin.

Inspection Window for Easy Tracking

Inspection Window for Easy Tracking

The inspection windows allows the blade to be seen on the wheel from the side, making blade tracking much easier.

Rack and Pinion Blade Guide Adjustment

Rack and Pinion Blade Guide Adjustment

The blade guides move on a sturdy rack and pinion system to provide optimum support.

Easy Fence Movement

Easy Fence Movement

The pads beneath the fence ensure it remains parallel to the table whilst allowing frictionless movement across it.

Heavy Duty Tensioning System

Heavy Duty Tensioning System

The blade tension assembly of the SABRE-350 gives ample strength to support the largest blades and ensure faultless performance for the heaviest of cuts.

Pedal Wheel Kit: Pedal Wheel Kit

Jockey Bar Wheel Kit: Jockey Bar Wheel Kit

Tilting Table: Tilting Table

Integral Legstand: Integral Legstand

Integral Standard Wheel Kit: Integral Standard Wheel Kit

Cast Iron Table: Cast Iron Table

Cast Iron Band Wheels: Cast Iron Band Wheels

Mitre Fence Included: Mitre Fence Included

Cam-Action Tensioner: Cam-Action Tensioner

Two Speeds: Two Speeds

Maximum Depth of Cut: 285 mm

Throat Depth: 345 mm

Table Size: 546 x 400 mm

Table Height from Floor: 1029 mm

Motor input P1: 1500 W

Motor output P2: 1100 W

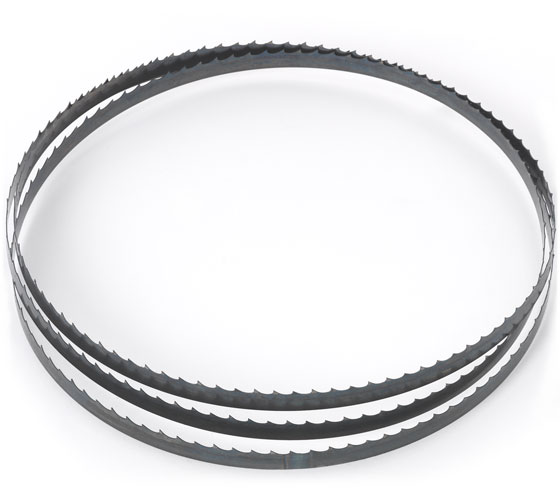

Blade Length: 111

Blade Width Capacity: 1/4 - 3/4

Blade Speed: 440 and 1000 M / minute

Extraction Port Diameter: 100 mm

Weight: 116 kg

Size: H1892 x W870 x D656 mm
