SABRE-450 Sabre450 18" Bandsaw (230v)

(68000)
SABRE-450 Sabre450 18

The SABRE range of bandsaws are the next evolutionary step from the highly regarded and market-leading Record Power premium bandsaws. The SABRE-450 builds on this success, boasting a range of fantastic new features in addition to being the largest ever bandsaw to bear the Record Power name. The 1500 W output (2 hp) motor drives the heavy cast iron wheels with ample power to cope with the heaviest of cuts. The cam-action fence adjustment, spring-loaded guides, cam-action blade tension release and double-sided fence mount make this a machine that is so easy to setup and use it leaves you free to concentrate fully on the project at hand. In addition, the SABRE-450 features an electromechanical braking system, making it ideal for use in educational environments.

Please note: Optional mitre fence available soon.

Available early December.

Heavy Duty Cast Iron Band Wheels

Heavy Duty Cast Iron Band Wheels

Dynamically balanced and heavy, the wheels provide a flywheel effect during use, contributing to the power and effectiveness of the machine.

Electromechanical braking system

Electromechanical braking system

For faster stopping time and improved safety.

Double-Sided Fence Mount

Double-Sided Fence Mount

The unique fence mount design allows the fence to be placed to the right hand side of the blade, with the fence extrusion secured on the opposite side of the mount.

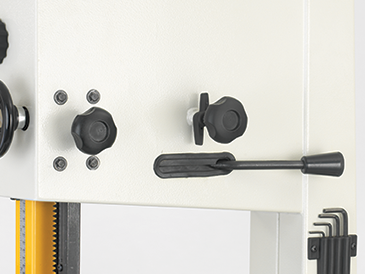

Cam-Action Blade Tension Adjustment

Cam-Action Blade Tension Adjustment

Release and re-apply blade tension instantly using the cam-action handle. This makes changing blade simple and fast and if the new blade is the same as the old, the correct tension can be instantly re-applied on fitment.

Easy-Adjust Blade Guides

Easy-Adjust Blade Guides

The spring-loaded blade guides can be adjusted quickly and easily without tools.

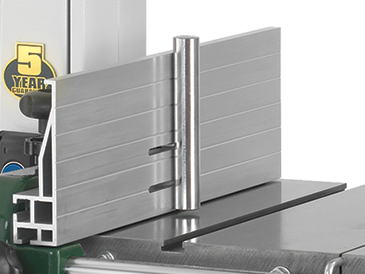

Resaw Bar Included

Resaw Bar Included

The resaw bar is easily installed to the fence and can be used when resawing long pieces - the timber pivots on the resaw bar to compensate for grain variations in the wood to avoid the cut wandering.

Heavy Duty Double Trunnion

Heavy Duty Double Trunnion

This industrial-style trunnion gives rock-solid support to the table and can be easily adjusted up to 45º using the substantial rack-and-pinion system and locked firmly in place with the large and easily accessible locking lever.

Table Levelling Pin

Table Levelling Pin

Perfect alignment of the table is ensured with the simple-but-effective levelling pin.

Inspection Window for Easy Tracking

Inspection Window for Easy Tracking

The inspection windows allows the blade to be seen on the wheel from the side, making blade tracking much easier.

Rack and Pinion Blade Guide Adjustment

Rack and Pinion Blade Guide Adjustment

The blade guides move on a sturdy rack and pinion system to provide optimum support.

Cam-Action Fence Positioning

Cam-Action Fence Positioning

Aligning the blade with the fence is extremely fast and easy, requiring no adjustments to the fence rail.

Easy Fence Movement

Easy Fence Movement

The pads beneath the fence ensure it remains parallel to the table whilst allowing frictionless movement across it.

Heavy Duty Tensioning System

Heavy Duty Tensioning System

The blade tension assembly of the SABRE-450 gives ample strength to support the largest blades and ensure faultless performance for the heaviest of cuts.

Useful Height Guide

Useful Height Guide

The blade guard features a scale to show the cutting height, an ideal reference for accurately setting the guides to the required position.


Jockey Bar Wheel Kit: Jockey Bar Wheel Kit

Tilting Table: Tilting Table

Integral Legstand: Integral Legstand

Integral Standard Wheel Kit: Integral Standard Wheel Kit

Cast Iron Table: Cast Iron Table

Cast Iron Band Wheels: Cast Iron Band Wheels

Mitre Fence Included: Mitre Fence Included

Cam-Action Tensioner: Cam-Action Tensioner

Two Speeds: Two Speeds

Maximum Depth of Cut: 320 mm

Throat Depth: 445 mm

Table Size: 658 x 400 mm

Table Height from Floor: 900 mm

Motor input P1: 2000 W

Motor output P2: 1500 W

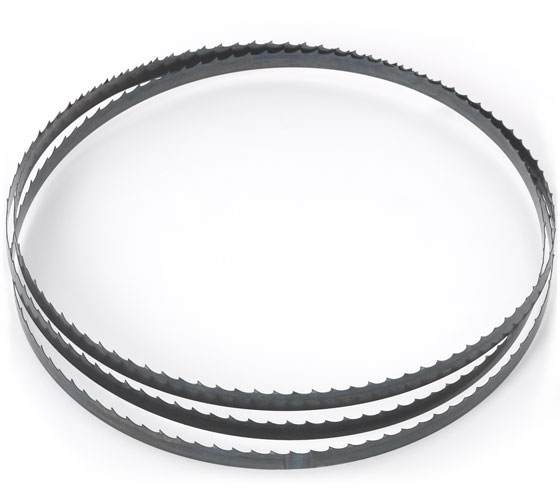

Blade Length: 153

Blade Width Capacity: 1/4 - 1 3/8

Blade Speed: 1000 M / minute

Extraction Port Diameter: 100 mm

Weight: 149 kg

Size: H1880 x W976 x D740 mm

Download
SABRE-450 Manual 3.2

PDF reader required


68000 Sabre450 18
68000
£1,399.99
