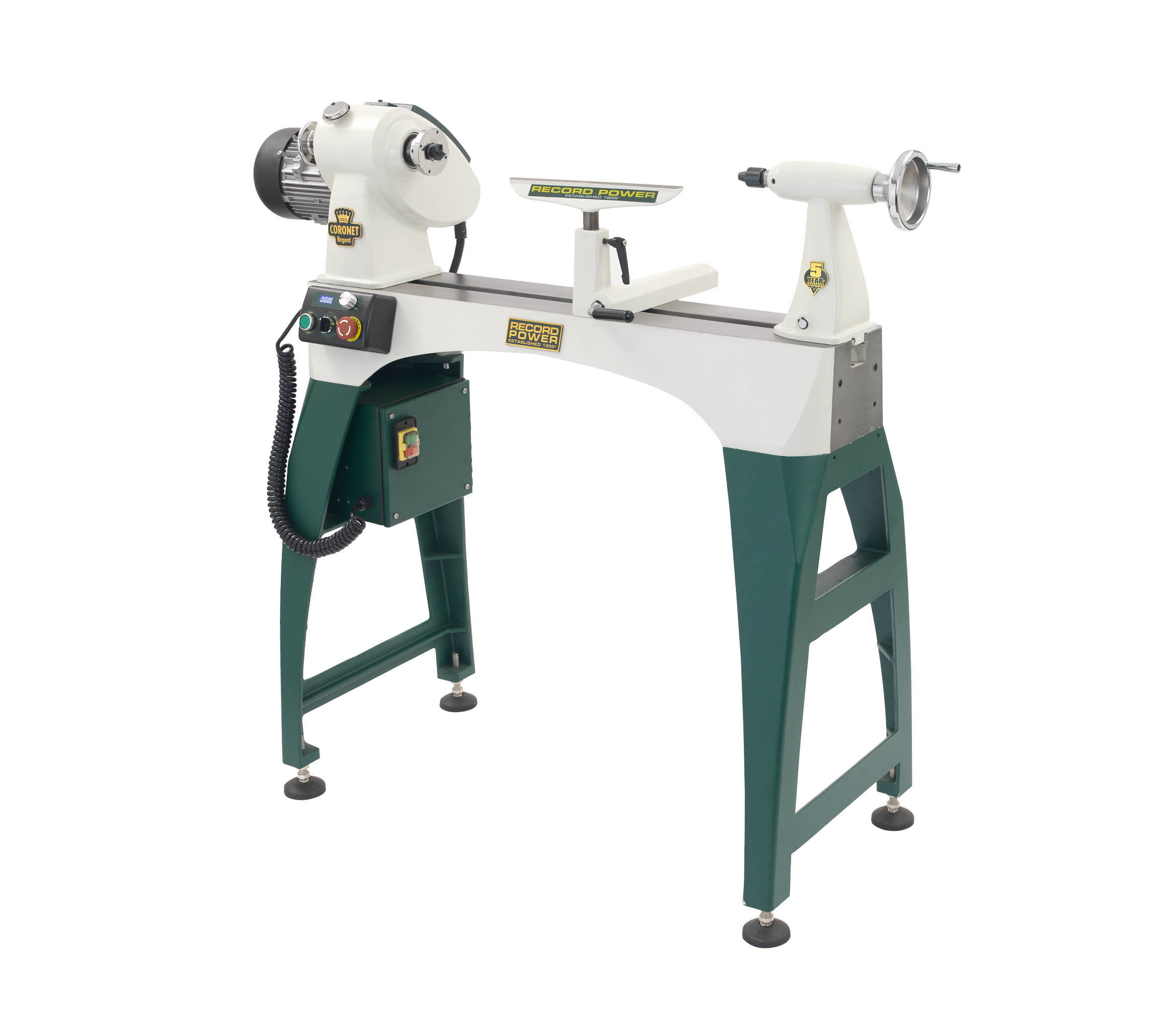

Coronet Envoy Cast Iron Heavy-Duty Electronic Variable Speed Lathe

(17001)

Description
Features
Specification
Reviews
Downloads
Comparison

Part of the exclusive range of Coronet lathes from Record Power, the Envoy is perfect for the woodturner who regularly needs the power, stability and capacities necessary for large scale work. Designed as a natural progression from the Coronet Herald, it is supported by large and heavy integral cast iron legs to give ample protection from vibration while turning out of balance timbers.

The overall heavy-duty construction of the machine, along with the finely engineered and machined components make this lathe a pleasure to use.

The Envoy offers unrivalled value-for-money in its class without compromising capacity or features. It offers the benefits of electronic variable speed, a rotating and sliding headstock, reverse function and solid cast iron build throughout, yet at a cost more commonly associated with either much smaller or less well-specified lathes.

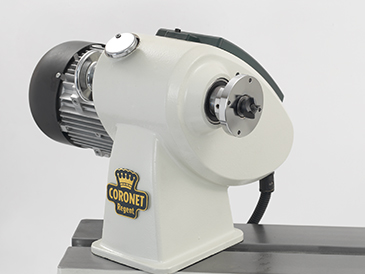

Rotating and Sliding Headstock

Unlike many cast bed lathes, the headstock of the Envoy can be rotated 360º, optimising access and making it ideal for left-handed turners. A bearing system beneath the headstock allows it to be locked at 90º to the lathe bed and it can also be moved along the bed if required.

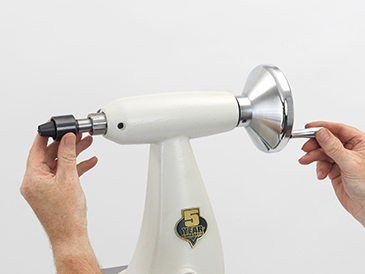

Self-Ejecting Tailstock

The self-ejecting tailstock allows for accessories to be easily and quickly removed without the need for a knockout bar. It accepts 2 Morse taper accessories, providing excellent strength and solidity.

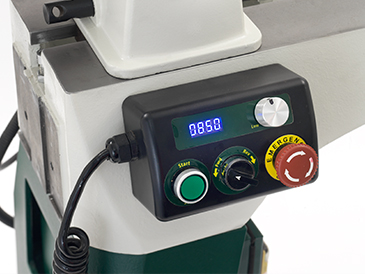

Repositionable Control Panel

The control panel of the Envoy can be placed anywhere on the lathe and is secured from the rear with a strong magnet. Ideal for when turning large timbers which can limit access to the headstock-mounted fixed control panels found on many lathes.

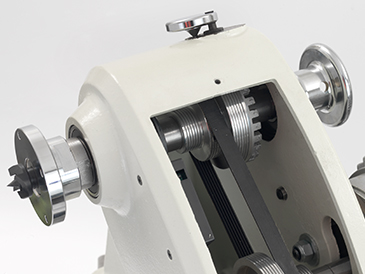

3-Step Pulley

A 3-step pulley is provided for maximum versatility. For most turning the middle pulley is ideal and provides good torque but if you need maximum torque for heavy cuts or low speed work, then the bottom pulley has immense torque capability and the top pulley gives access to the highest speeds. For ease of use the drive belt position can be seen through the inspection window of the headstock.

Powerful Motor and Electronic Variable Speed

The motors provide more than enough power to handle the large timbers the lathes are capable of holding and instantaneous speed change is achieved using the easily accessible control panel. Reverse direction turning is also possible, making them ideal for sanding.

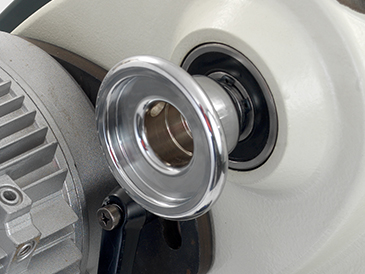

Hand Wheel

The headstocks feature a substantial hand wheelto turn the spindle, making fitment of headstockaccessories much easier.

Heavy-Duty Spindle Lock and Indexing

Holds the spindle securely and offers a full 24-point indexing function.

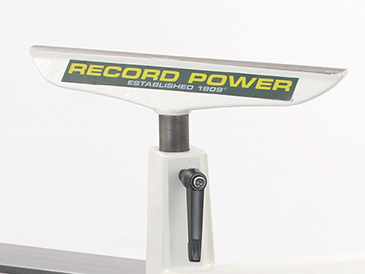

Heavy-Duty Tool Rest Stem

The 1” diameter tool rest stem helps minimise vibration, giving a smoother and easier cut.

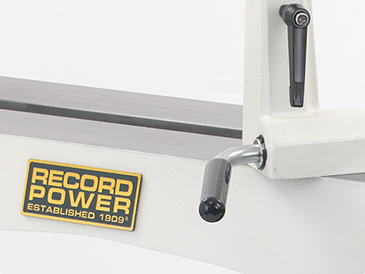

Cam Lock

The tool rest holders and tailstocks are locked in place instantly with the easy-to-use cam locking system.

Rotating and Sliding Headstock

Self-Ejecting Tailstock

Repositionable Control Panel

3-Step Pulley

Powerful Motor and Electronic Variable Speed

Hand Wheel

Heavy-Duty Spindle Lock and Indexing

Heavy-Duty Tool Rest Stem

Cam Lock

Key Features

Swivel Headstock:

Outboard Turning:

Cast Iron Bed:

Solid Steel Bed Bars:

Integral Legstand:

Extendable Bed Length:

Bench Mountable:

Spindle Lock:

Electronic Variable Speed:

Optional Fitments

Bowl Rest:

Legstand:

Variable Speed Upgrade:

Bed Extension:

Specifications

Maximum bowl diameter: 1000 mm (39")

Maximum between centres: 610 mm (24")

Maximum swing over bed: 410 mm (16")

Spindle speeds: 100- 3800 rpm

Motor input P1: 1.5 kW

Motor output P2: 1.1 kW

Thread: M33 x 3.5

Taper: 2 Morse taper

Weight: 140 kg

Dimensions

Size: L1435 x D540 x H1210 mm
