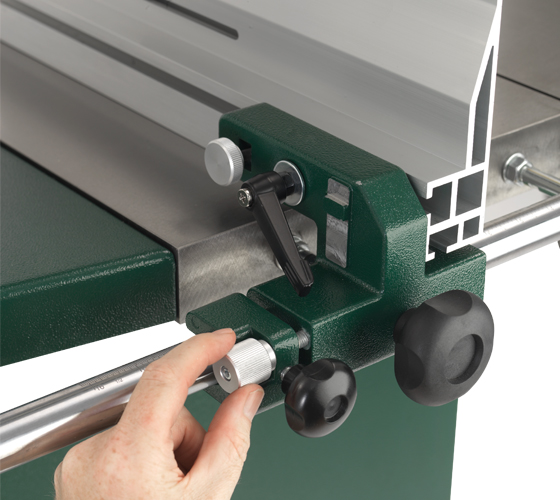

Cam-Action Fence Alignment and Micro-Adjustment Positioning
Fine adjustment to ensure the fence is perfectly parallel to the blade is quick and easy with the SABRE fence, thanks to the intuitive cam-action mechanism. The micro-adjustment feature allows the fence to be positioned exactly where it’s needed along the sturdy solid steel fence mount, ensuring highly accurate cutting.

Easy-Adjust Sliding Block Blade Guides
The sliding block blade guides can be easily adjusted without the need for tools and provide extensive blade support. They are designed to disperse the heat build-up on the blade during use, reducing blade fatigue and ensuring your blades last longer.

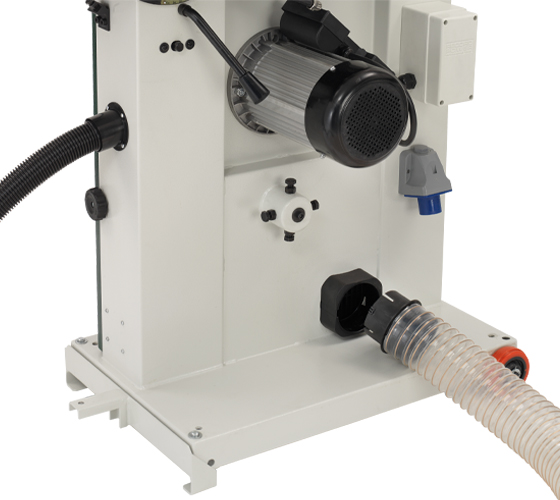

Dust Extraction Advancements
Side and rear dust extraction ports provide effective protection from harmful wood dust. The 2.5” (63 mm) diameter side port is compatible with standard CamVac 2.5” hose and the 4” (100 mm) rear port features a CamVac-compatible bayonet fitting which is also suitable for use with standard 4” hose and fixings.

Heavy-Duty Cast Iron Band Wheels
Dynamically balanced and heavy, the band wheels have been designed to concentrate their weight to the periphery, providing plenty of momentum to create a flywheel effect during use whilst not impeding the cutting speed of the machine through excess bulk. This helps maximise the power and effectiveness of the bandsaw and reduces strain on the motor for a longer lifespan.

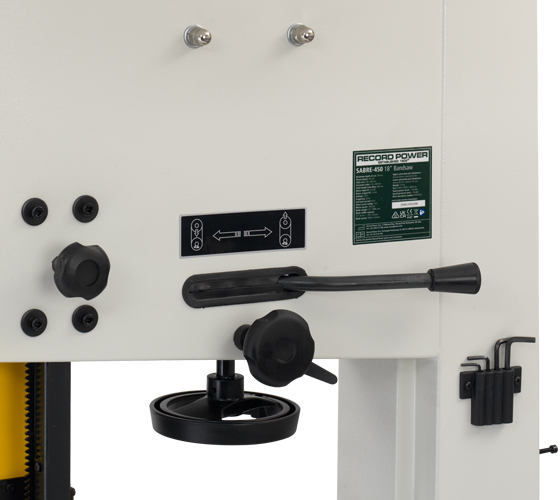

Cam-Action Blade Tension Adjustment
Release and reapply blade tension instantly using the cam-action handle. This makes changing blade simple and fast and if the new blade is the same as the old, the correct tension can be instantly reapplied on fitment.

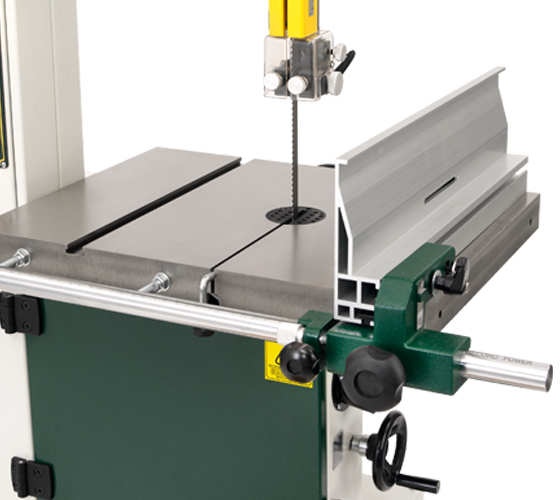

Double-Sided Fence Mount
The unique fence mount design allows the fence to be placed to the right-hand side of the blade, with the fence extrusion secured on the opposite side of the mount. Ideal when making mitre cuts, to support the timber when the table is tilted.

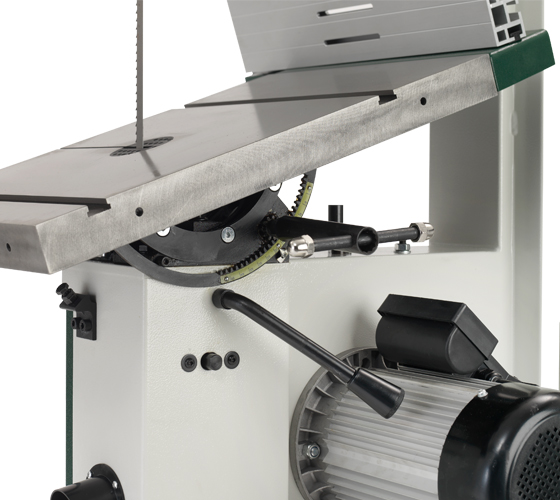

Heavy-Duty Cast Trunnion
This industrial-style trunnion gives rock-solid support to the table and can be easily adjusted up to 45º using the substantial rack-and-pinion system and locked firmly in place with the large and easily accessible locking lever.

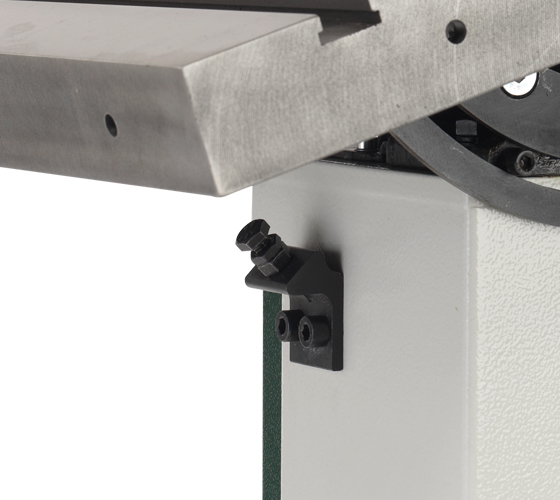

45º Table Stop
Quickly and easily set the table angle to 45º every time with this simple-but-effective stop.

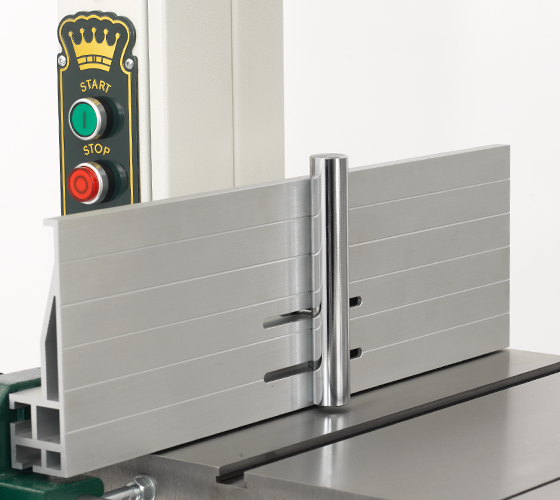

Single-Point Fence Included
The single-point fence is easily installed to the rip fence and can be used when re-sawing long pieces - the timber pivots on the fence to compensate for grain variations in the wood to avoid the cut wandering.

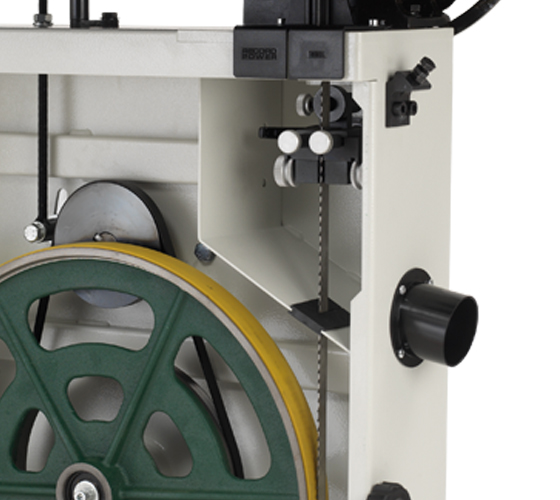

Lower Cabinet Dust Cap
Designed to reduce airflow leakage into the main cabinet, improving overall extraction efficiency.

Electromechanical Brake Release
When the bandsaw is stationary, the electromechanical brake can be released to allow movement of the wheel for blade tracking.

16 Amp Required
Available as single-phase 16-amp. Three-phase version available as special order.

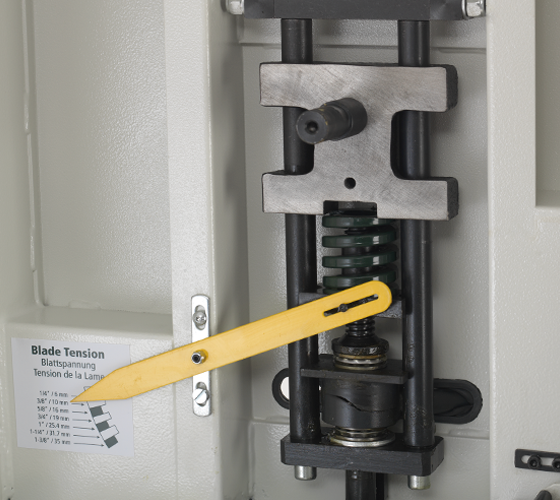

Heavy-Duty Tensioning System
If you know your blade is in good condition, then the most likely cause for blade wander is insufficient blade tension. The systems in the SABRE range are very heavy-duty and designed to apply more than enough tension for any width of blade that can be accommodated.

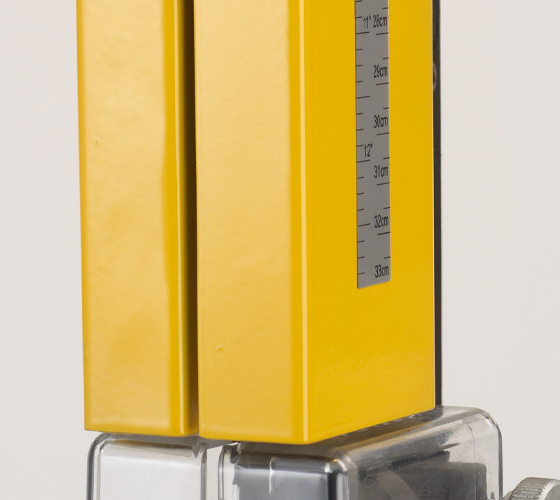

Useful Height Guide
Whilst we always advise to ‘measure twice and cut once’ – the blade guards on the SABRE range include a scale to indicate cutting height. It is a useful and quick reference for setting the guides to the required height before making final adjustments.
Jockey Bar Wheel Kit:
Tilting Table:
Integral Legstand:
Integral Standard Wheel Kit:

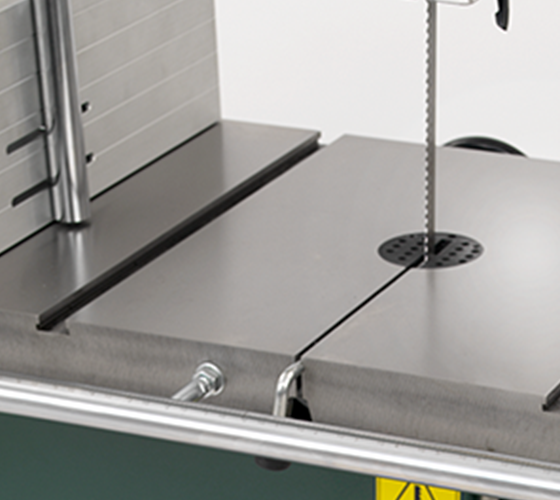

Cast Iron Table:
Cast Iron Band Wheels:
Mitre Fence Included:
Cam-Action Tensioner:

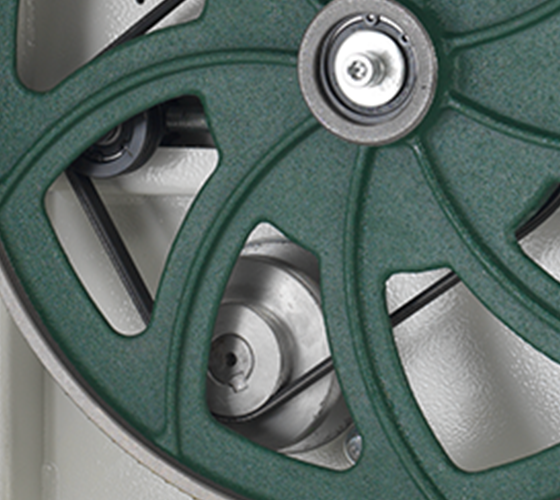

Two Speeds:
Maximum Depth of Cut: 320 mm
Throat Depth: 445 mm
Table Size: 546 x 400 mm
Table Height from Floor: 900 mm
Motor input P1: 1.9 kW single-phase / 2 kW three-phase
Motor output P2: 1.5 kW
Blade Length: 153” (3886 mm)
Blade Width Capacity: 1/4” (6.35 mm) - 1-3/8” (35 mm)
Blade Speed: 1000 m / minute
Extraction Port Diameter: 2.5” (63 mm)/ 4" (100 mm)
Weight: 190 kg
Size: H1850 x W976 x D680 mm
